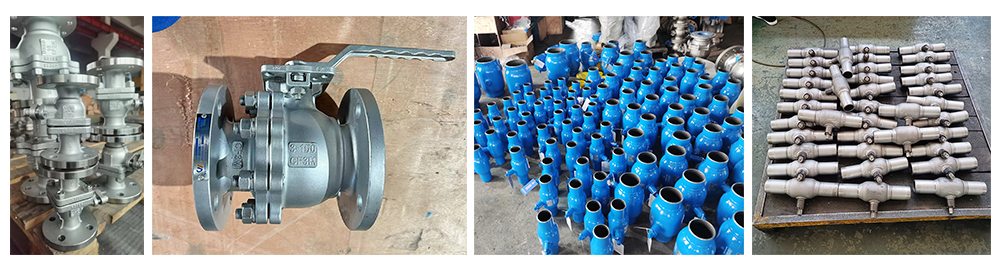

The ball valve is a valve that uses a round ball as a closing element to control the flow of media. The working principle of the ball valve is very simple. By rotating the ball, the flow path switch is closed to control the medium. Ball valves are widely used in petroleum, natural gas, chemical industry, electric power, water treatment, and other industries due to their advantages of easy operation, good sealing performance, and long service life.
Ball valves are usually divided into two categories: Floating ball valves and fixed ball valves. The ball of the floating ball valve can move freely and is sealed by the medium pressure to compress the ball, while the ball of the fixed ball valve is fixed and mainly relies on the elasticity of the valve seat to compress the ball to ensure sealing. The ball valve has a 90° rotary switch function, is easy to operate, has a compact structure, and can quickly cut off and open.
The main advantages of ball valves:
Easy to operate: Just rotate 90 degrees to quickly open and close.
Good sealing performance: When the ball valve is closed, the contact surface between the ball and the valve seat can provide a tight seal to prevent medium leakage.
Strong durability: The ball valve has a simple structure, is easy to maintain, and has a long service life.
Wide range of applications: Ball valves are suitable for a variety of media, such as water, oil, gas, etc., and can work under high temperature and high pressure conditions.

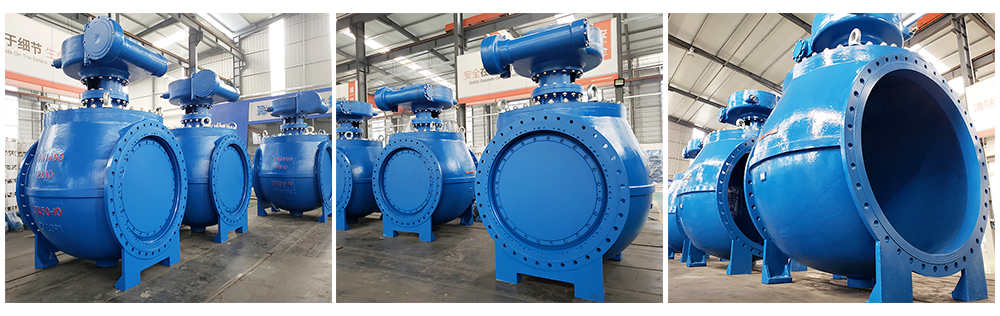

What is a top-mounted eccentric semi-ball valve?
The top-mounted eccentric semi-ball valve is a new valve structure design that combines the advantages of ball valves and butterfly valves to provide more efficient operation and sealing performance under various complex working conditions. Different from traditional ball valves, the ball and valve seat of the top-mounted eccentric ball valve has an eccentric structure. The ball will automatically deflect away from the valve seat during the opening and closing process, thereby reducing friction and extending the valve life.
Top-mounted eccentric semi-ball valves are usually used in working conditions that require frequent opening and closing and high sealing performance requirements, such as petroleum, chemical industry, metallurgy, electric power, and other fields. Due to its unique structural design, this type of valve is widely used in high-pressure and corrosive media environments.
Structural features of the top-mounted eccentric semi-ball valve:
Top-mounted eccentric semi-ball valve is mainly composed of the valve body, eccentric ball, valve stem, valve seat, handle or actuator. Its most notable feature is that the relative positions of the ball and the valve seat are not concentric, but have a certain degree of eccentricity. During the opening and closing process, the ball will rotate along the eccentric axis and automatically separate from the valve seat, thereby avoiding the excessive friction caused by the contact between the ball and the valve seat when closing the traditional ball valve.
What are the main differences between top-mounted eccentric semi-ball valves and ordinary ball valves?
There are many differences between top-mounted eccentric semi-ball valves and ordinary ball valves in structural design, working principle, and application scenarios.
1. Differences in structural design
Ordinary ball valve: The contact surface between the ball and the valve seat is always concentric, that is, the ball is always close to the valve seat during the opening and closing process. The sealing effect is mainly achieved by pressing the ball against the medium pressure.
Top-mounted eccentric semi-ball valve: Adopting an eccentric design, the ball, and the valve seat gradually separate during the opening and closing process until they are completely separated from the valve seat. When closing, the ball gradually returns to the valve seat, creating a strong sealing effect through the leverage provided by the eccentric design. This reduces friction during the opening and closing process and extends the service life of the valve.
2. Differences in operating torque
When the top-mounted eccentric semi-ball valve is closed, the operating torque is greatly reduced after the ball is separated from the valve seat. When an ordinary ball valve is opened and closed, due to the continuous contact between the ball and the valve seat, the torque required for opening and closing is relatively large, especially in a high-pressure environment.
3. Differences in applicable working conditions
Ordinary ball valve: suitable for medium and low-pressure working conditions with a relatively single medium, such as water, oil and other common fluids.
Top-mounted eccentric ball valve: more suitable for complex working conditions with high pressure, high temperature, corrosive media or granular media. Its eccentric design can effectively avoid wear of the valve seat by media particles and has wider adaptability.
4. Differences in sealing performance
Due to its eccentric design and higher valve seat pressing force, the top-mounted eccentric ball valve has superior sealing performance, especially under high temperature and high-pressure conditions, and can maintain a stable sealing state for a long time.
What are the main features of the top-mounted eccentric semi-ball valve?
Top-mounted eccentric ball valves have many features that make them excellent in specific applications:
1. Low friction
Since the ball gradually deviates from the valve seat during the opening and closing process, the top-mounted eccentric ball valve greatly reduces friction. Compared with traditional ball valves, their opening and closing are smoother, the operation is more labor-saving, and the wear on the valve seat is reduced.
2. Excellent sealing performance
When the top-mounted eccentric ball valve is closed, the ball will automatically return to the valve seat to form a reliable seal. Due to the eccentric design, its sealing pressure is greater, which is especially suitable for high-pressure working conditions and can effectively avoid medium leakage.
3. Corrosion resistance and wear resistance
The top-mounted eccentric ball valve is made of special materials and can resist various corrosive media. At the same time, its eccentric design minimizes the wear of the valve seat and ball prolongs its service life, and is especially suitable for applications containing granular media.
4. Adapt to harsh working conditions
This type of valve is particularly suitable for use in environments with high temperatures, high pressures, and corrosive or granular media. The eccentric structure allows the valve to maintain stable sealing and operating performance in extreme environments.
What are the main advantages of top-mounted eccentric semi-ball valves?
Compared with other types of ball valves, the main advantages of top-mounted eccentric semi-ball valves are reflected in the following aspects:
1. Extend service life
Since the eccentric design reduces friction during the opening and closing process, the wear of the valve is greatly reduced and the service life of the valve is extended. Especially in frequent opening and closing or high-pressure environments, the effect of extending the service life is particularly obvious.
2. Higher sealing performance
The eccentric ball valve can generate a large pressing force when closed, so it can still maintain good sealing and prevent leakage in high temperature and high pressure environments.
3. Reduce maintenance costs
The design of the top-mounted eccentric ball valve reduces wear and operating torque, reducing the possibility of equipment failure, thereby reducing maintenance and replacement costs.
4. Energy saving and efficient
Since the torque required for opening and closing is small, the eccentric ball valve can save energy in actual operation. Especially in working conditions with a high degree of automation, this energy-saving effect is particularly significant.
What are the application conditions of top-mounted eccentric semi-ball valves and how to select them?
Due to its unique structural design, the top-mounted eccentric semi-ball valve is suitable for a variety of complex working conditions, especially in the following fields:
1. Oil and natural gas industry
In the transportation and processing of oil and natural gas, high-pressure valves are usually required to ensure the flow of media. Due to its superior sealing performance and corrosion resistance, the top-mounted eccentric ball valve can maintain good operation and sealing performance under high pressure and high temperature conditions.
2. Chemical industry
In the chemical production process, some highly corrosive media are often involved. The anti-corrosion materials and eccentric design used in the top-mounted eccentric ball valve enable it to effectively resist corrosion and extend its service life.
3. Metallurgical industry
The metallurgical industry usually requires valves to withstand high temperatures, high pressures, and media-containing particles. The wear-resistant design of the top-loading eccentric ball valve makes it an ideal choice in metallurgical production processes.
4. Electric power industry
In the power industry, especially in high-pressure steam pipelines, cooling water systems, and other equipment that require high-temperature and high-pressure sealing, top-mounted eccentric ball valves are widely used due to their superior sealing performance, high-temperature resistance, corrosion resistance, and other characteristics. Valves in power plant boilers and steam pipelines that require frequent opening and closing are ideal application scenarios.
Selection guide for top-mounted eccentric semi-ball valves
The selection of top-loading eccentric ball valves need to consider the specific requirements of the working conditions, including the physical and chemical properties of the medium, operating temperature and pressure, pipe size, operation method, and other factors. Here are some key selection steps:
1. Select materials based on media properties
Different media have different material requirements for valves. For corrosive media, corrosion-resistant materials (such as stainless steel, alloy steel, etc.) should be selected; for particle-containing media, wear-resistant materials should be selected.
2. Consider operating temperature and pressure
Select the appropriate valve according to the operating temperature and pressure range of the actual working conditions. Under high temperature and high pressure conditions, it is necessary to ensure that the design pressure of the valve can meet the requirements and that the material can maintain stable performance under high temperature.
3. Determine valve size
Select the appropriate valve size according to the flow demand of the pipeline to avoid choosing a valve that is too large or too small, which will affect the flow control and energy consumption of the system.
4. Choose the appropriate operation method
If the application scenario requires frequent operations or automated control, you can choose electric, pneumatic and other automated actuators; for simple situations, you can choose manual operation.
5. Evaluate sealing requirements
If the working conditions require high sealing performance (such as high pressure, volatile or toxic and harmful media), you need to choose an eccentric ball valve with stronger sealing performance to ensure that the media does not leak.
What are the common faults of top-mounted eccentric semi-ball valves?
Although the top-mounted eccentric semi-ball valve reduces many common problems of traditional ball valves due to its excellent design, some failures may still occur in actual use. The following is an analysis of several common failures and their causes:
1. Seal failure
Seal failure is one of the common failures of eccentric semi-ball valves.
Reasons may include:
Valve seat wear: Long-term use or the flow of media containing particles will cause wear to the valve seat, resulting in a decrease in sealing performance.
Media corrosion: When inappropriate materials are used, corrosive media will cause damage to the ball and valve seat, affecting the sealing effect.
Improper installation: Not properly adjusted or parts misaligned during installation, resulting in a loose seal.
2. The operation is stuck or the movement is insensitive
The stuck operation may be due to increased friction between the valve stem and the valve seat, or due to the accumulation of medium sediments in the valve body, resulting in poor opening and closing of the valve. This type of problem is common when working with media containing particles or viscous materials.
3. The valve cannot be fully closed
If an eccentric ball valve fails to seal completely when closed, possible reasons include:
Foreign matter blockage: Foreign matter accumulates on the valve seat or ball, causing the ball to not completely close.
Damage to the sealing surface: Due to impurities or corrosion in the medium, the sealing surface is damaged and the original sealing effect cannot be maintained.
4. Valve stem leakage
Valve stem leakage is generally caused by damage or aging of the sealing packing. Especially under long-term high temperature and high pressure conditions, the packing is easy to deform or fail, resulting in leakage at the valve stem.
How to install and maintain the top-mounted eccentric semi-ball valve?
To ensure the normal operation and extended service life of the top-loading eccentric ball valve, correct installation and regular maintenance are essential. Here are some key steps for installation and maintenance:
1. Preparations before installation
Check the valve: Before installation, carefully check the appearance of the top-mounted eccentric ball valve for damage, confirm that all parts are intact and all connections are tight.
Clean the pipeline: Before installing the valve, make sure the inside of the pipeline is clean to avoid foreign matter entering the valve body and affecting the subsequent sealing effect.
Aligned installation: During installation, it is necessary to ensure that the flange or welding interface of the valve is aligned with the pipeline to avoid uneven stress on the valve after being installed in an deviated position, which will affect the opening and closing performance.
2. Installation steps
Correct installation direction: Install the valve in the correct flow direction position according to the flow direction mark on the valve body. If the valve is a one-way sealing structure, attention must be paid to the flow direction of the valve.
Connection flange tightening: For flange-connected valves, the flange bolts should be tightened gradually during installation to avoid uneven stress and damage to the valve sealing surface due to one-time tightening.
3. Routine maintenance
Regular lubrication: For top-mounted eccentric ball valves that are frequently opened and closed, the valve stem and operating mechanism should be lubricated regularly to ensure smooth operation and avoid jamming.
Check the seals: Check the valve seals (such as valve seats, packings, etc.) regularly and replace them promptly if they are worn or aged.
Clean the valve body: If the medium contains impurities or sediments, the inside of the valve body should be cleaned regularly to prevent sediments from affecting the sealing performance of the valve.
4. Common troubleshooting
Valve stem leakage: When valve stem leakage occurs, it can be solved by adjusting or replacing the sealing packing. If the packing is seriously worn, it should be replaced with new packing in time.
Seal failure: If the sealing surface of the valve seat or ball is damaged, the sealing performance can be restored by grinding or replacing the seal.
Valve stuck: If you feel that the valve is stuck during operation, it is recommended to check whether there is any foreign matter blocking the inside of the valve body, and clean the foreign matter before operating.
Summarize
As an innovative valve, the top-mounted eccentric semi-ball valve can effectively reduce friction during the opening and closing process, extend service life, improve sealing performance, and operate in high temperature, high pressure, and corrosive and granular media with its unique eccentric design. Excellent performance in complex working conditions. When selecting, comprehensive considerations should be made based on factors such as the nature of the medium, operating temperature and pressure, valve size, and operation method.
With correct installation and regular maintenance, the top-mounted eccentric semi-ball valve can significantly improve the operating efficiency of the system, reduce the occurrence of failures, and extend the service life of the equipment. Understanding common fault types and taking corresponding preventive measures can further ensure the normal operation of the valve, reduce maintenance costs, and improve the safety and reliability of the system.
