The main differences between ultrasonic water meters and mechanical water meters:
With the continuous development of water resources management technology, ultrasonic water meters are gradually replacing traditional mechanical water meters and becoming the mainstream choice for modern water measurement. The differences between the two are mainly reflected in the following aspects:
Differences in measurement principles:

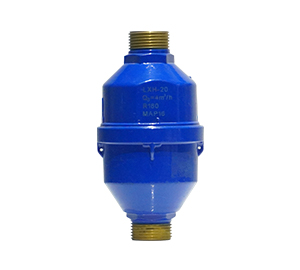

Mechanical water meter: relies on water flow to push internal mechanical components (such as impellers or pistons) to rotate, and records the amount of water through the movement of gears. This method is greatly affected by the physical characteristics of the water flow and is easily affected by factors such as changes in water quality and impurity deposition, resulting in inaccurate measurements.

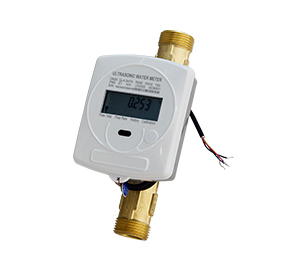

Ultrasonic water meter: Determine the speed of water flow by measuring the time difference between ultrasonic waves propagating in water, thereby calculating the flow rate. Because there are no moving parts, ultrasonic water meters have high measurement accuracy and are not easily affected by water quality or impurities.
Service life and maintenance requirements:
Mechanical water meter: Due to the mechanical moving parts inside, it is prone to wear and tear after long-term use and requires regular maintenance and replacement.
Ultrasonic water meter: Has no mechanical moving parts, requires almost no maintenance, and has a service life much longer than that of a mechanical water meter.
Applicable environment:
Mechanical water meter: Suitable for ordinary residential or small commercial water metering, with a narrow scope of application.
Ultrasonic water meter: It is suitable for a variety of complex environments, including industrial water, sewage treatment, long-distance pipelines, etc., especially in large-diameter pipelines.
Data processing and transmission:
Mechanical water meter: Data is usually displayed mechanically, making real-time remote monitoring difficult to achieve.
Ultrasonic water meter: Equipped with an intelligent data processing and transmission system, it can be integrated with cloud platforms or Internet of Things devices to achieve remote monitoring and management.

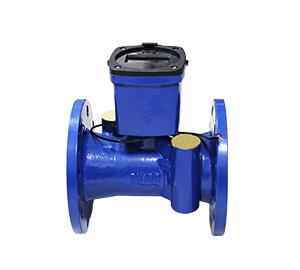

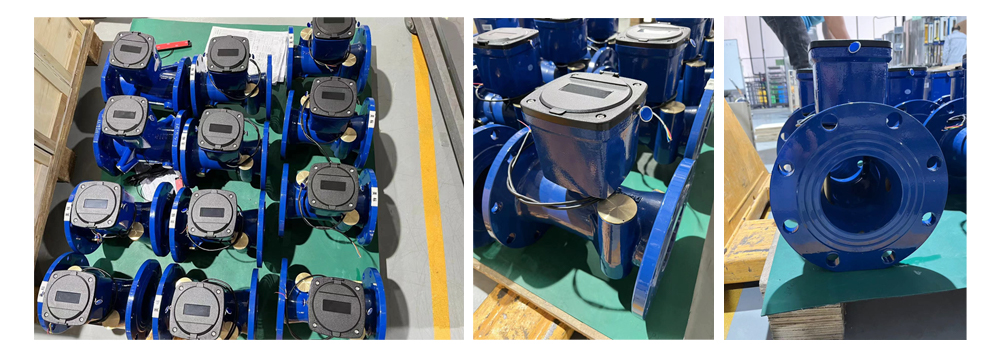

Working principle of ultrasonic flange water meter
Ultrasonic flange water meters use the principle of time difference when ultrasonic waves propagate in water to measure. Specifically, when water flows through the pipe, ultrasonic transmitters and receivers located at both ends of the pipe send and receive ultrasonic signals in the downstream and counter-flow directions respectively. Due to the existence of water flow, the propagation speed of ultrasonic waves in the downstream direction will be faster than that in the countercurrent direction. By measuring the time difference between the two, the water meter can accurately calculate the water flow velocity and thus obtain the flow value.
Ultrasonic flange water meter mainly consists of the following key components:
Ultrasonic transmitter and receiver: Installed upstream and downstream of the pipeline, used to transmit and receive ultrasonic signals.
Calculation unit: Convert the received time difference into water flow velocity and further calculate the flow rate.
Display device: Real-time display of water flow and cumulative water consumption.
This mechanical contact-free measurement method not only improves metering accuracy, but also reduces water meter wear and maintenance requirements.
Advantages of ultrasonic flange water meter
High measurement accuracy: Ultrasonic flange water meters can maintain stable measurement accuracy at extremely low and extremely high flow rates, and are especially suitable for occasions that require high measurement accuracy.
Long service life: Since there are no mechanical parts, the ultrasonic water meter wears very little and has a service life of more than 15 years.
Low maintenance cost: The ultrasonic water meter has a simple design and requires almost no regular maintenance, reducing operating costs.
Wide range of applications: Suitable for clean water, sewage and other liquid media containing impurities, and widely used in urban water supply, industrial process control, sewage treatment and other fields.
Intelligent and remote monitoring: Ultrasonic water meters are usually equipped with digital display and data transmission functions, which can be connected with intelligent management systems to achieve remote monitoring and management, greatly improving management efficiency.
Application of ultrasonic flange water meter
Ultrasonic flange water meters have been widely used in many fields due to their high accuracy, long life and wide applicability:
Urban water supply management: Used to monitor and measure flow in urban water supply systems, helping to optimize the management and dispatch of water resources.
Industrial flow control: In petrochemical, metallurgy, food processing and other industries, it is used to accurately control the flow of liquid during the production process to ensure the stability and efficiency of the production process.
Energy management: In energy systems such as heating and cooling, ultrasonic water meters can monitor circulating water flow and optimize energy usage efficiency.
Sewage treatment: In sewage treatment plants, ultrasonic water meters can accurately measure sewage flow at different stages to ensure the effectiveness of the treatment process and environmental compliance.
Installation requirements for ultrasonic flange water meters
In order to ensure the normal operation and optimal performance of the ultrasonic flange water meter, the following requirements should be followed during the installation process:
Selection of installation location: Ultrasonic flange water meters should be installed on straight pipe sections to avoid direct installation at water pump outlets, elbows, etc. to ensure stable water flow. It is generally recommended that the length of the upstream straight pipe section is 10 times the pipe diameter and the downstream length is 5 times the pipe diameter.
Horizontal or vertical installation: Depending on the specific conditions of the pipeline, the ultrasonic water meter can be installed horizontally or vertically, but the internal sensor of the water meter should be ensured to be in a full flow state to ensure measurement accuracy.
Electromagnetic interference protection: The installation environment of ultrasonic water meters should be away from strong electromagnetic interference sources, such as high-voltage lines, high-power motors, etc., so as not to affect the stability of ultrasonic signals.
Temperature and pressure requirements: The operating temperature and pressure of the ultrasonic flange water meter should meet the requirements of the use environment. Generally, when purchasing, you need to select the appropriate model based on the actual working conditions.
Regular inspection and calibration: Although ultrasonic water meters require low maintenance, regular inspection and calibration are recommended to ensure accuracy in long-term use.
In modern water resources management and industrial flow control, ultrasonic flange water meters have become indispensable key equipment due to their high accuracy, long life, low maintenance costs and wide applicability. Whether it is urban water supply, industrial process control, or sewage treatment, ultrasonic flange water meters have demonstrated excellent performance and reliability.
