Home > Products > Check Valve > Rubber Flap Check Valve

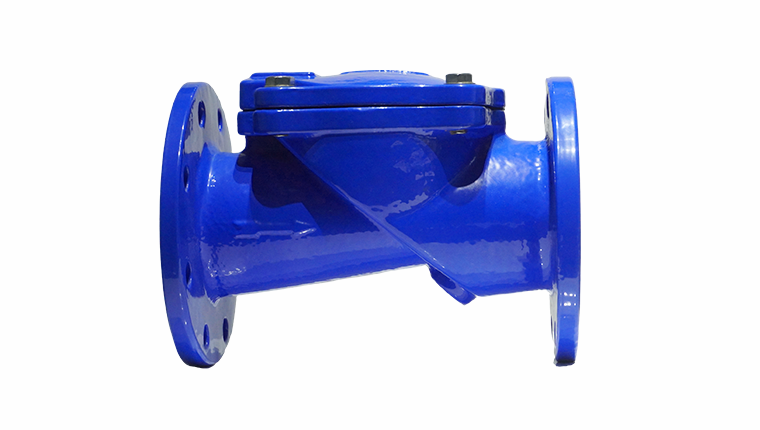

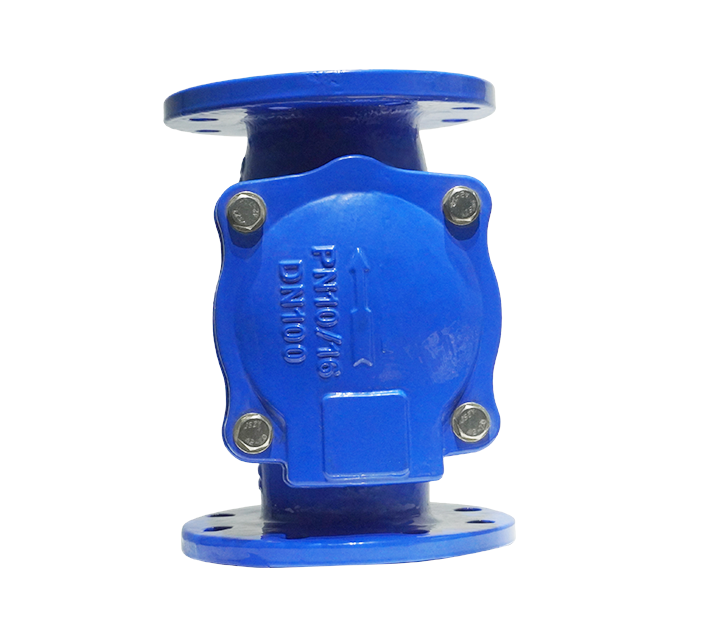

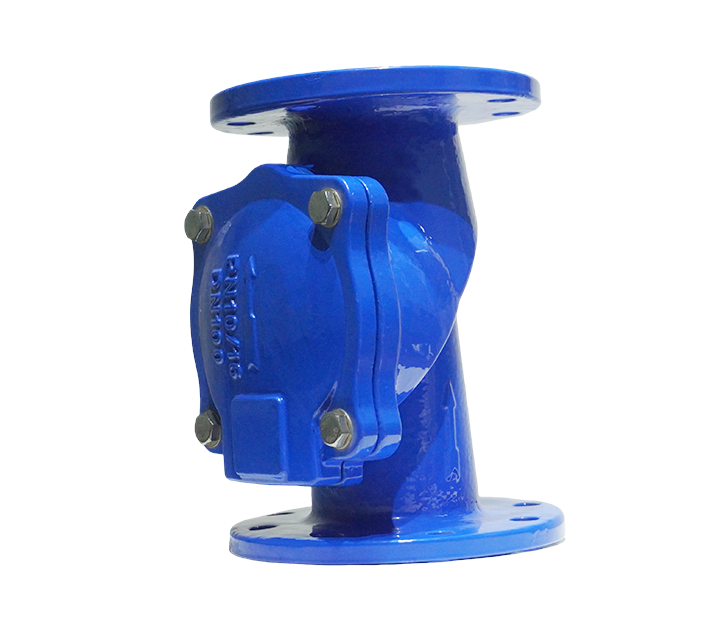

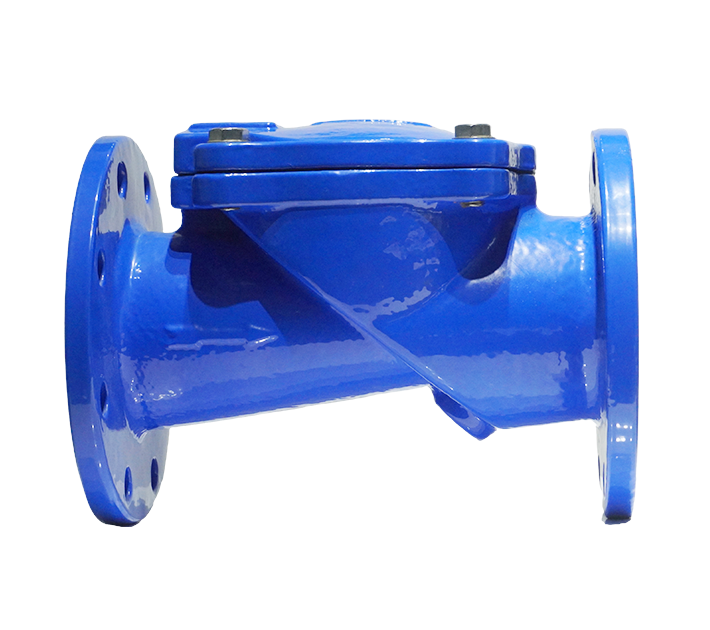

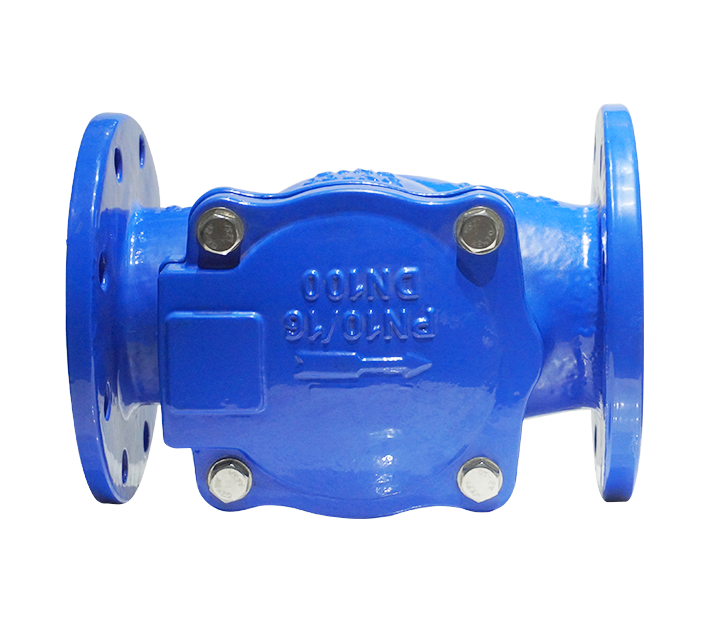

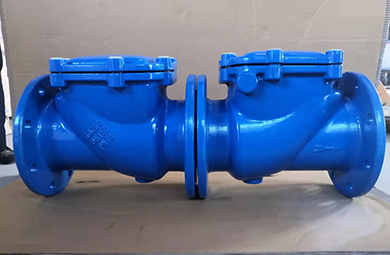

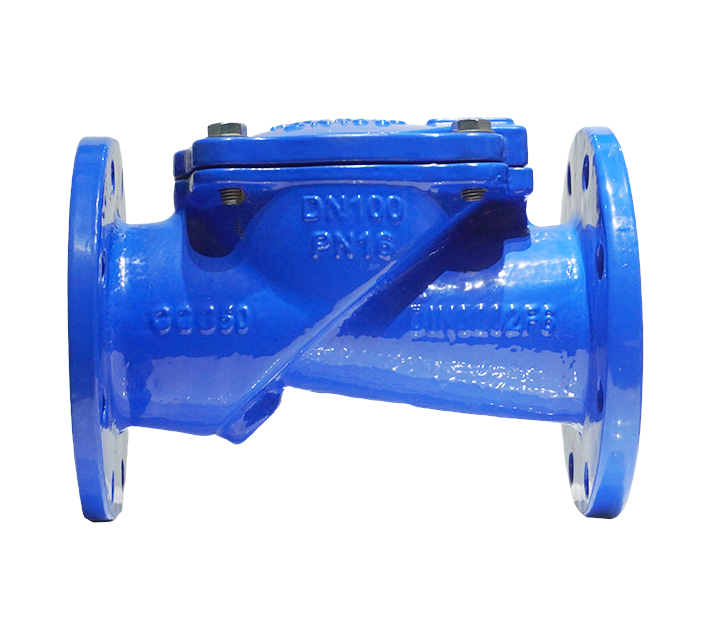

Rubber Flap Check Valve

Size:
2”~20”
Pressure Rating:
PN10-PN16,150LB, 10K
Material:
Ductile Iron
Design Standard:
BS5153
Inspection Standard:
EN12266
Application Medium:
Water
Send Email
Chat Now
Products PDF
The rubber flap check valve has a complete 100% flow area, low head loss and resistance to clogging. To ensure long-term reliability, because the valve’s reinforced rubber floppy disk is the only moving part, its integral O-ring provides a drop-proof seal under low and high working pressures.
Download
(11.6 MB)
Features
The rubber flap check valve has a complete 100% flow area, low head loss and resistance to clogging. To ensure long-term reliability, because the valve’s reinforced rubber floppy disk is the only moving part, its integral O-ring provides a drop-proof seal under low and high working pressures.
The rubber flap check valve has a unique and simple design with only one moving part. The flap does not swing from the hinge pin; it just flexes open. The seat is at a 45° angle. The baffle moves 35° from opening to closing, usually before column reversal occurs. It has non-slam characteristics.
The valve does not require regular maintenance. At the same time, the combination of 45-degree seat angle, short stroke and the inherent memory of its flexible disc can provide quick closing and anti-impact operation.
Due to the inclined design of the sealing ring of the rubber flap check valve, the closing time is short and the water hammer pressure can be reduced.
The valve flap is made of nitrile rubber and steel plate after being pressed at high temperature. It is resistant to erosion and has good sealing performance.
It is mainly applied to oil, chemical, food, medicine, textiles, paper making, water supply and drainage, smelting and energy department ,also used as single direction valves.
Why choose us
Factory direct sale, saving costs for your projects.
Wide products range, diversified product standards. We provide products in various standards such as ANSI, DIN, JB, JIS, EN, EU, GB, API, etc.
One-stop service. We cover all series of products for water systems, fire protection systems, oil and gas, construction, etc. satisfy your diverse needs.
1000+ projects experience to provide customized solutions for every customer.
5 domestic factories, 4 international warehouses and many foreign branches.
60+ engineers team , 20+ quality inspections for each product before leaving the factory, ensuring safety, reliability, and durability.
30+ professional after-sale services team, continuous customer visit service, to be your lifelong partner.
Who we are
6
5
4
3
2
1
Experience
Rich projects experience
Cliente en Etiopía Yaxin Gaardo visitó nuestra oficina central en Zhengzhou
Sep 21, 2023
Client in Ethiopia Yaxin Gaardo visited our head office in Zhengzhou
learn more
wesdom flange
Oct 03, 2024

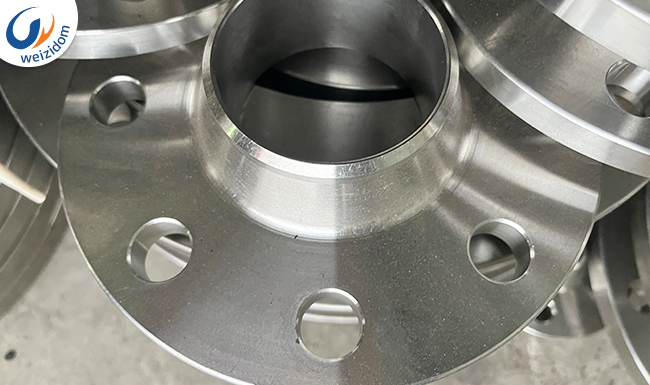

How to choose the right flange?
