Home > Products > Flow Meter > Handheld Ultrasonic Flow Meter
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano
Medidor de flujo ultrasónico de mano

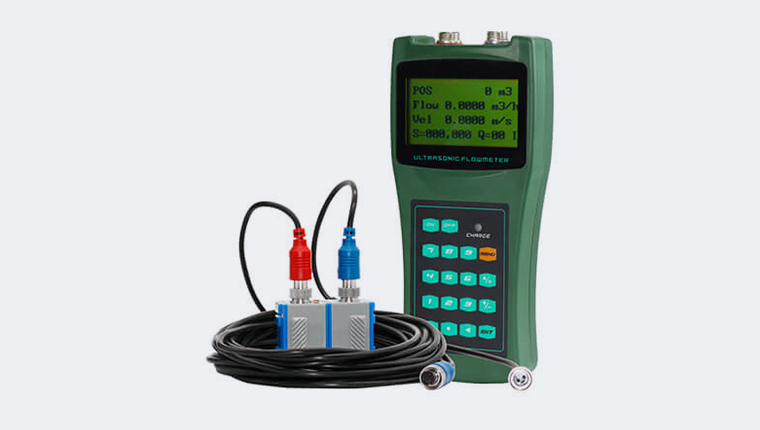

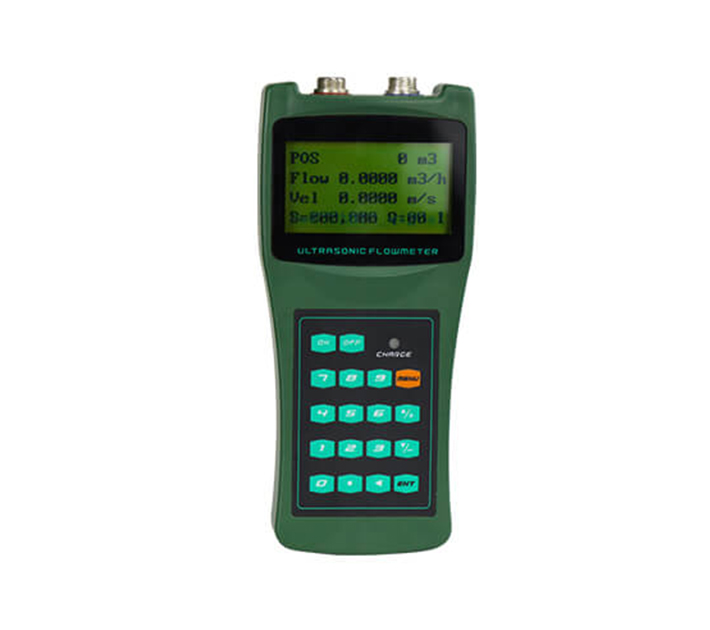

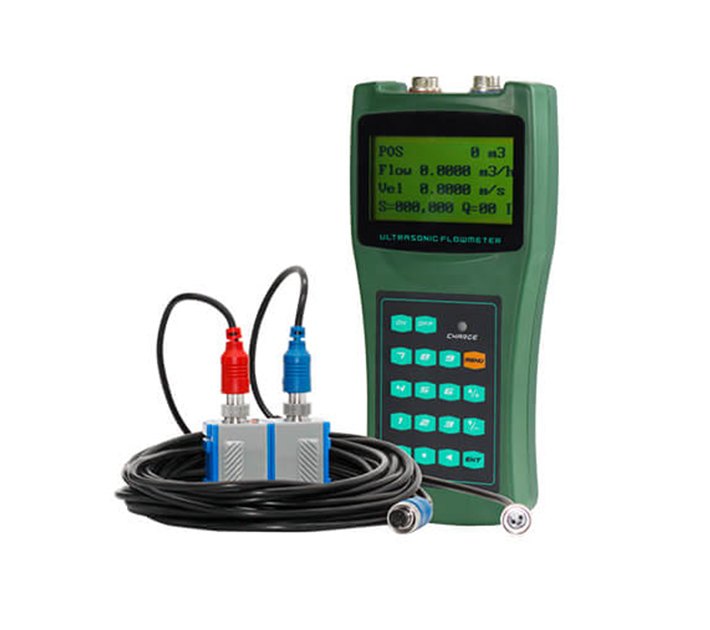

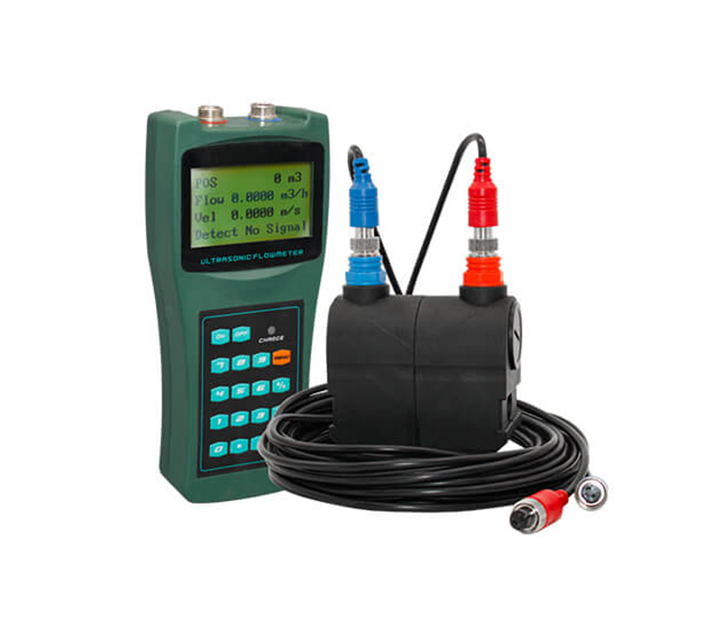

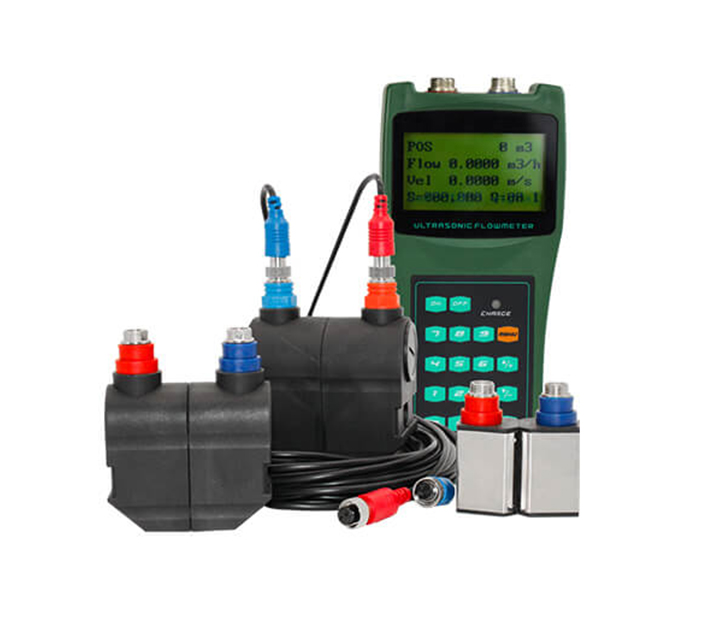

Handheld Ultrasonic Flow Meter

Size:
DN15mm-6000mm
Linearity:
0.5%
Repeatability:
0.2%
Accuracy:
±1% of reading at rates>0.2 mps
Response Time:
0-999 seconds, user-configurable
Velocity:
±32 m/s
Medium:
Water, salt water, alcohol, various oil stable liquid
Send Email
Chat Now
Handheld Ultrasonic Flow Meter
WESDOM handheld ultrasonic flow meter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size. Convenient carrying and accurate measurement.
Download
(25.1 MB)
Features
Handheld ultrasonic flow meter working principle: Time-transit measurement principle is adopted, the signal transmitted by one flow meter transducer passes through the pipe wall, the medium, and the other side pipe wall, and is received by another flow meter transducer. At the same time, the second transducer also transmits the signal received by the first transducer. The influence of the medium flow rate, there is a time difference, and then the flow value Q can be obtained.
WESDOM handheld ultrasonic flow meter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size. Convenient carrying and accurate measurement.
Handheld ultrasonic flowmeters are particularly suitable for scientific research and measurement calibration due to their obvious advantages of being portable and removable for measurement without damaging the pipeline.
The ultrasonic flow meter is suitable for pure liquid measurement, such as pure water, city water supply, industrial water, pure oil, pure chemical liquid, etc.
Medidor de flujo ultrasónico de mano
Why choose us
Factory direct sale, saving costs for your projects.
Wide products range, diversified product standards. We provide products in various standards such as ANSI, DIN, JB, JIS, EN, EU, GB, API, etc.
One-stop service. We cover all series of products for water systems, fire protection systems, oil and gas, construction, etc. satisfy your diverse needs.
1000+ projects experience to provide customized solutions for every customer.
5 domestic factories, 4 international warehouses and many foreign branches.
60+ engineers team , 20+ quality inspections for each product before leaving the factory, ensuring safety, reliability, and durability.
30+ professional after-sale services team, continuous customer visit service, to be your lifelong partner.
