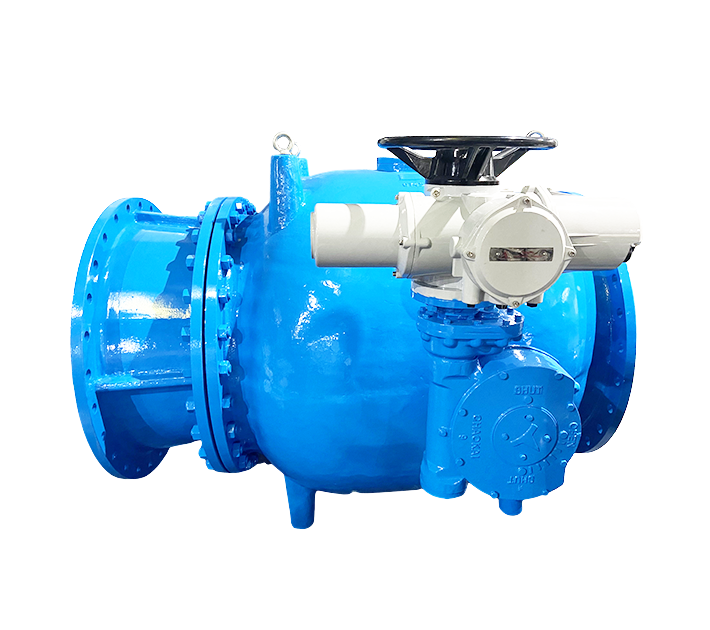

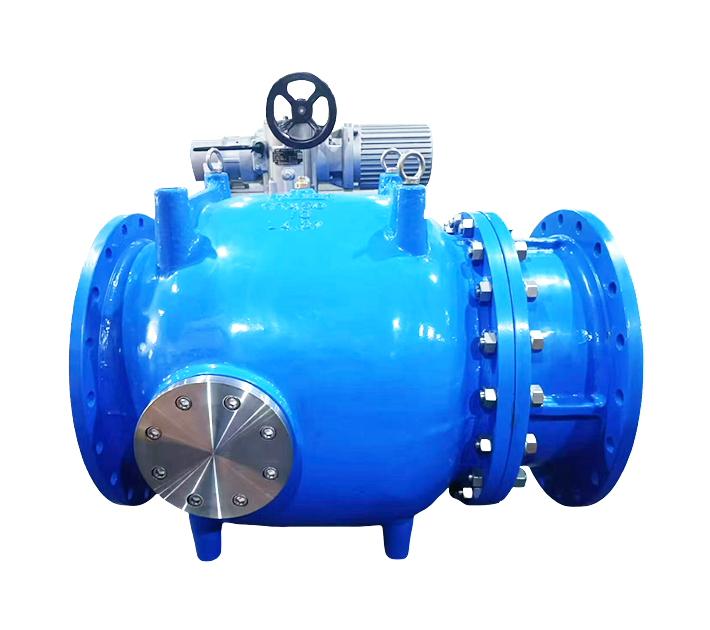

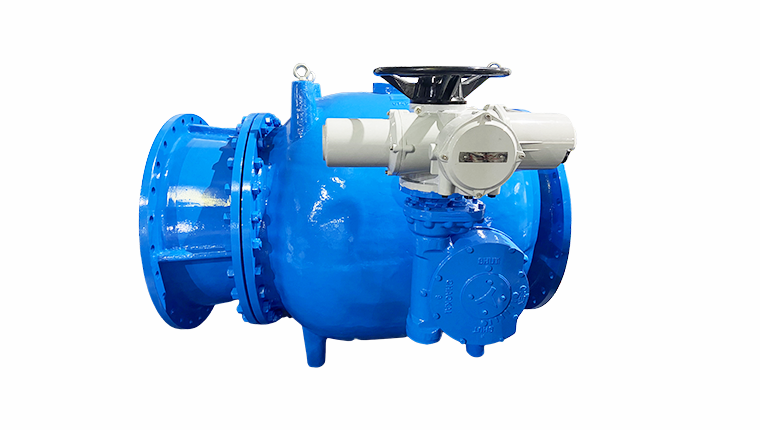

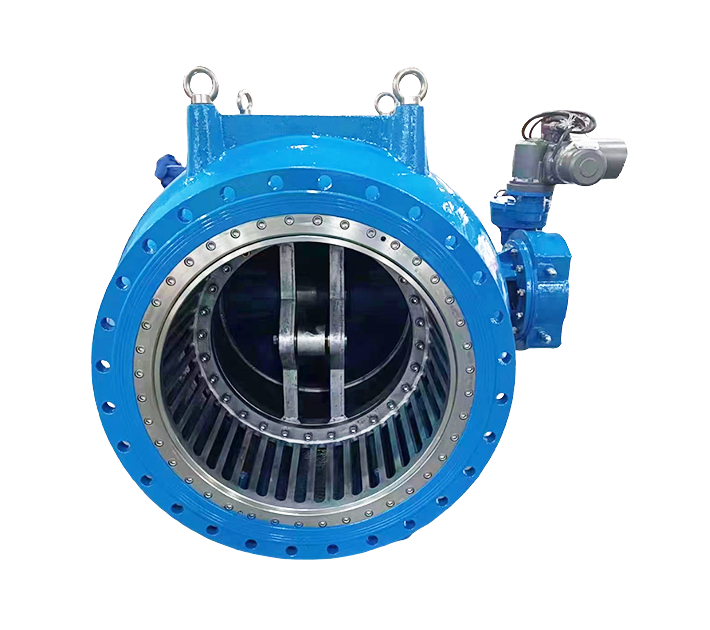

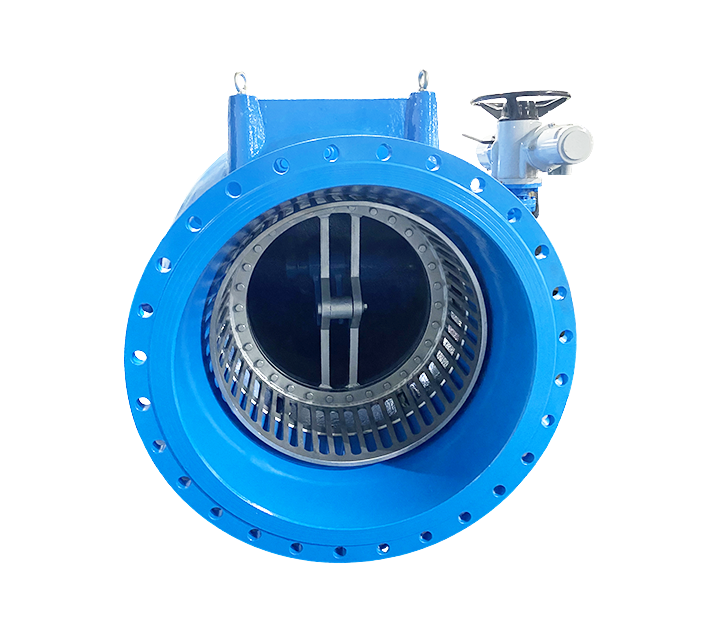

Flow Control Valve

What is butterfly valve installation and maintenance?

Products PDF

The lifted seat design controls the flow around the plug so that in case of cavitation this happens with minimal damage away from plug and seat

Features

The lifted seat design controls the flow around the plug so that in case of cavitation this happens with minimal damage away from plug and seat

The parabolic shape of the plug creates a smooth regulating characteristic with low gain around the near-closed positions improving control performance at low flow

Non-symmetric axial position of rubber diaphragm results in low stretch stress when closed

Body and bonnet of ductile iron coated with fusion bonded epoxy

All rubber parts approved for drinking water

All non-coated internals made of stainless steel or bronze

Seat and pilot in stainless steel AISI 304

A needle valve fitted between the upstream side and the control chamber allows for adjustment of the regulation reaction time

Closing the needle valve isolates the control chamber and fixes the position of the main valve allowing for service of the pilot valve

Fittings, pipes and accessories in Ni-plated brass

Why choose us

Factory direct sale, saving costs for your projects

Wide products range, diversified product standards. We provide products in various standards such as ANSI, DIN, JB, JIS, EN, EU, GB, API, etc.

One-stop service. We cover all series of products for water systems, fire protection systems, oil and gas, construction, etc. satisfy your diverse needs.

1000+ projects experience to provide customized solutions for every customer.

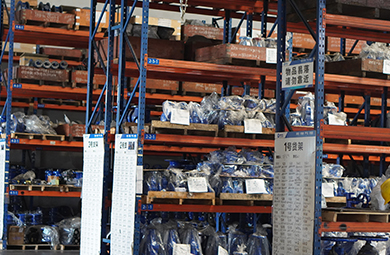

5 domestic factories, 4 international warehouses and many foreign branches.

60+ engineers team , 20+ quality inspections for each product before leaving the factory, ensuring safety, reliability, and durability.

30+ professional after-sale services team, continuous customer visit service, to be your lifelong partner.
