The current working medium of the ball valve of the pipe jacking machine is mainly mud. The mud contains a certain amount of sand, stones and other solid substances that will wear, corrode and wash the ball valve pipes and balls, reducing the service life of the ball valve. This solution is temporarily designed to solve the problem of the ball valve. current situation.
ESDOM has rich experience in designing, producing and manufacturing ball valves since its establishment, and has certain solutions to the main technical difficulties of ball valves.

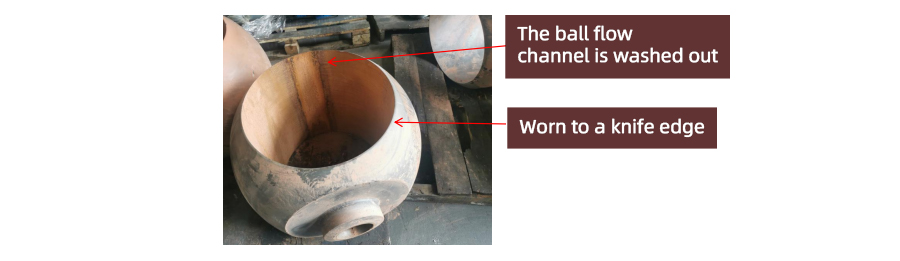

If the working medium is sand, there will be sand and stones that will impact the surface of the ball, causing serious wear and corrosion on the surface of the ball. It will not only reduce the service life of the ball valve but also cause leakage. This solution sprays WC on the surface of the ball to increase the surface hardness of the ball. Enhanced wear resistance of the ball and increased service life.

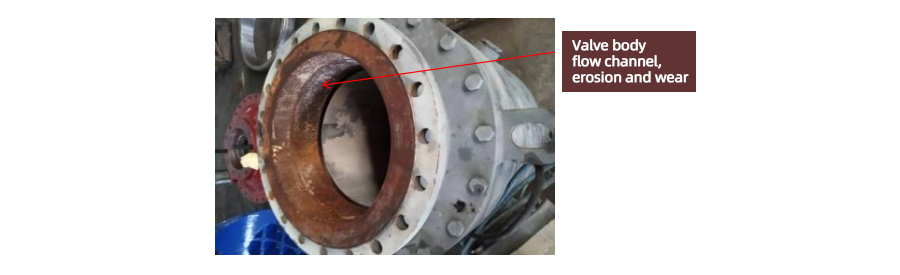

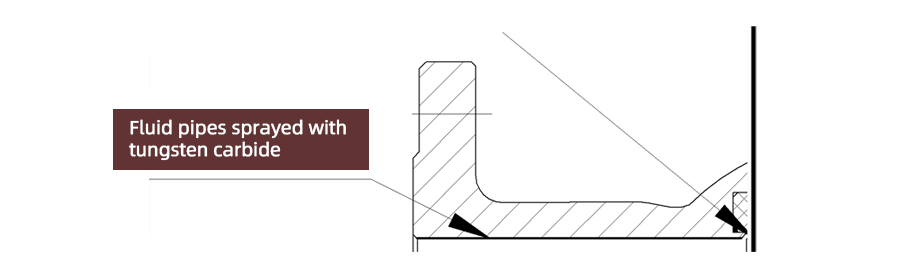

1. The working medium will also cause wear and corrosion to the valve body flow channel. This solution sprays tungsten carbide on the surface of the valve body flow channel to increase the hardness of the flow channel surface and enhance the wear resistance and corrosion resistance of the flow channel;
Solution:

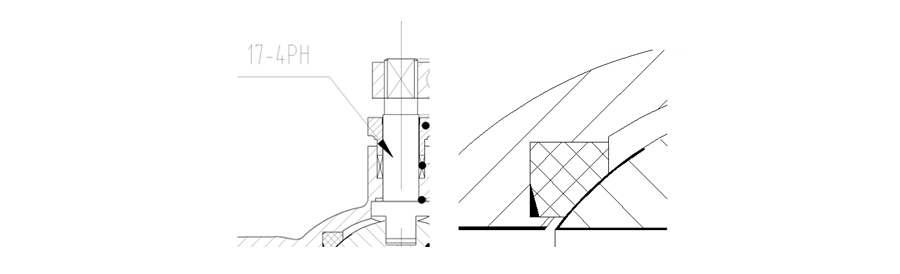

2. The original inflexible rotation of the ball switch resulted in high torque and bending deformation of the valve stem. This plan improves the valve seat and valve stem so that the ball can rotate easily and flexibly, and the valve stem will not bend or deform;
Solution:

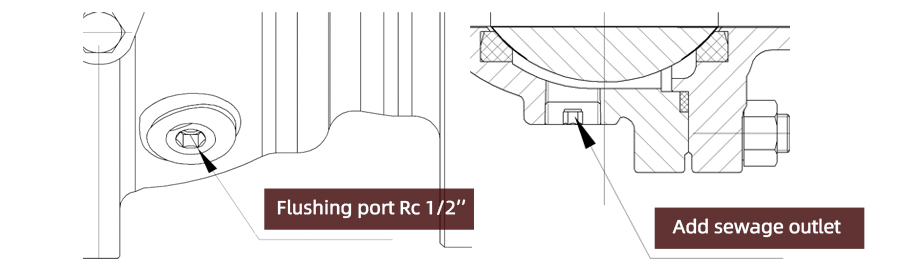

3. The fluid medium is sediment, which will be deposited in the cavity during use and cannot be ruled out, causing corrosion and wear of the ball valve. For this purpose, this solution adds a flushing port and a sewage outlet to flush the ball valve and prevent sediment from getting stuck.
Solution:

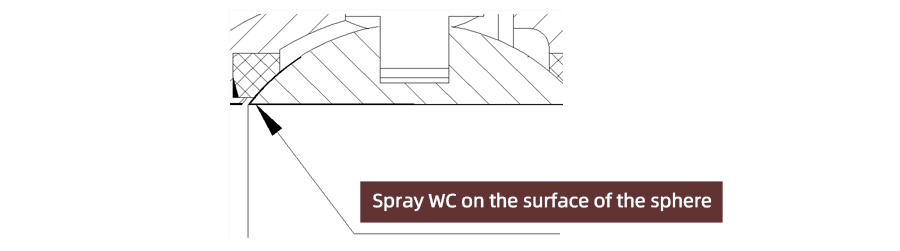

4. If the working medium is sand, there will be sand and stones that will impact the surface of the ball, causing serious wear and corrosion on the surface of the ball. It will not only reduce the service life of the ball valve but also cause leakage. This solution sprays WC on the surface of the ball to make the surface hardness of the ball. Improved, enhanced the wear resistance of the ball and increased its service life;
Solution:
5. The original rotation angle of the ball switch cannot be controlled, resulting in the ball and valve body pipeline not reaching the ideal state. This plan improves the positioning of the ball to ensure the rotation angle of the ball.
Solution:
Skills requirement:
① Design and manufacturing according to: enterprise standards;
② The structural length is according to: enterprise standards;
③ The flange standard is in accordance with the GB/T9113 standard;
④ Inspection and testing are in accordance with the GB/T 13927 standard;
⑤ After the experiment, remove the accumulated water, wipe the inner cavity, apply anti-rust oil and cover both ends of the diameter with stuffy caps to prevent dirt from entering;
⑥ The surface of the ball is sprayed with carbide to enhance wear resistance.
