Hard Seated Gate Valves: The Ultimate Solution for High-Pressure and Extreme Environment Flow Control
In the world of industrial flow control, choosing the right valve for your system is crucial. Whether it’s a high-pressure pipeline, a high-temperature environment, or a system that handles corrosive fluids, gate valves are often the go-to solution. Among the various types of gate valves available, hard-seated gate valves stand out for their superior sealing performance, durability, and adaptability in extreme conditions.
This comprehensive guide explains everything you need to know about hard-seated gate valves, why they are ideal for specific industrial applications, and how to choose the right one for your needs.

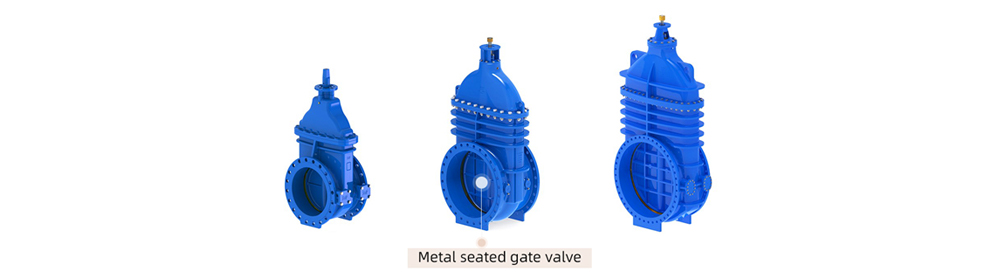

What Are Hard Seated Gate Valves?
A hard-seated gate valve is a type of valve that is designed to control the flow of liquids and gases through pipes. The term “hard-seated” refers to the use of a hard material (such as hard alloys, ceramics, or carbide) for the sealing surface. This material is chosen for its ability to withstand high pressure, high temperatures, and harsh environments without losing its sealing properties.
Unlike soft-seated gate valves, which use materials like rubber or PTFE (polytetrafluoroethylene) for sealing, hard-seated valves are more suited for applications that involve abrasive, high-temperature, or high-pressure conditions. The hard seating material provides a much longer lifespan and more robust performance, even in challenging industrial applications.
Why Choose Hard Seated Gate Valves?
Exceptional Sealing Performance
The primary benefit of hard-seated gate valves is their superior sealing capability. The hard sealing surfaces make them more resistant to wear and tear compared to traditional soft-seated valves.
They provide a tight seal even under high-pressure conditions, making them ideal for oil and gas pipelines, chemical processing plants, and water treatment facilities.
Durability and Longevity
The hard material used in the sealing surface of these valves provides excellent resistance to abrasion, corrosion, and erosion.
This makes them especially suitable for high-temperature and high-pressure environments, as well as industries that deal with abrasive or viscous fluids, such as mining or petrochemical processing.
Resistance to High Temperatures and Pressures
Hard-seated gate valves are specifically designed to operate in extreme conditions. Whether it’s a high-temperature steam system or a high-pressure hydraulic system, these valves can handle the stress and remain fully functional over long periods. The high thermal stability of the hard-seated materials ensures that they won’t deform or degrade under extreme temperatures.
Cost-Effective in the Long Run
While hard-seated gate valves may come with a higher initial price tag compared to soft-seated alternatives, their durability and low maintenance costs make them a more cost-effective solution in the long term. These valves typically require less frequent replacement and fewer repairs, which leads to significant savings on maintenance and downtime.
Applications of Hard Seated Gate Valves:
Hard-seated gate valves are used in a variety of industries where sealing reliability, high-pressure tolerance, and long-lasting performance are critical. Some common applications include:
Oil and Gas Industry:
The oil and gas industry is one of the biggest users of hard-seated gate valves. These valves are used in critical parts of the pipeline, where high pressure and extreme temperatures are common. Hard-seated gate valves ensure that the flow of oil or gas is regulated efficiently, without leakage, and can withstand the constant pressure changes within the system.
Chemical Processing:
Chemical plants often deal with corrosive fluids that require highly durable valves. Hard-seated gate valves provide excellent protection against the chemical corrosion of the valve body, ensuring long-term operational reliability in these demanding environments.
Water Treatment Facilities:
In water treatment plants, hard-seated gate valves are used to control the flow of water under high pressure. Their ability to provide a reliable seal and withstand abrasive particles in the water makes them the perfect choice for such facilities.
Power Generation:
Power plants—especially those that use steam and high-pressure water systems—benefit from the use of hard-seated gate valves. The high temperature and pressure in these environments require valves that can withstand extreme conditions without compromising performance.
Mining and Mineral Processing:
Mining operations that involve transporting minerals or dealing with abrasive materials in slurry form rely heavily on hard-seated gate valves. The ability to resist erosion and ensure a secure seal in these harsh environments is key to the successful operation of mining equipment.
How to Choose the Right Hard Seated Gate Valve?
When selecting the right hard-seated gate valve for your system, several factors must be considered to ensure that the valve is suited to your specific needs. Here are some key aspects to keep in mind:
Pressure and Temperature Ratings
One of the first considerations when choosing a hard-seated gate valve is its pressure and temperature ratings. Make sure the valve is designed to handle the maximum pressure and temperature that your system will encounter.
Valve Size and Flow Requirements
The size of the valve is another critical factor. You’ll need to ensure that the valve size matches your pipe diameter and that it can provide the required flow rate for your application.
Material Compatibility
The material of the valve is crucial for ensuring compatibility with the fluids in your system. Hard-seated gate valves are available in various materials, including carbon steel, stainless steel, alloy steels, and specialized alloys. Consider the chemical composition and properties of your fluid to select the appropriate material.
End Connections
Depending on your system’s configuration, you may need a valve with specific end connections such as flanged, threaded, or butt-welded ends. Be sure to choose a valve that matches your pipe connection type.
Operational Features
Hard-seated gate valves can be manually operated or automated. Some systems may require electric, pneumatic, or hydraulic actuators. Choose a valve with the appropriate actuation system that suits your application.
Certifications and Standards
It’s also important to select a valve that meets international standards like API, ANSI, or ISO certifications. These certifications ensure that the valve meets the necessary quality, safety, and performance standards for your industry.
6 Common Questions About Hard Seated Gate Valves and Their Solutions
What is the difference between hard-seated and soft-seated gate valves?
The primary difference lies in the sealing material used. Hard-seated gate valves utilize durable, hard materials like carbide, ceramic, or stainless steel for the sealing surface, making them ideal for high-pressure, high-temperature, or abrasive applications.
On the other hand, soft-seated valves use materials like rubber or PTFE for sealing and are better suited for lower-pressure systems where flexibility and ease of sealing are necessary. If you are working with aggressive fluids or extreme conditions, hard-seated gate valves provide superior longevity and reliability.
Why does my hard-seated gate valve leak?
Leakage in a hard-seated gate valve can occur due to a few reasons:
Wear and Tear: Over time, the sealing surface can wear down, especially under extreme pressures or abrasive flow conditions. Regular inspections and maintenance can prevent this issue.
Incorrect Installation: If the valve isn’t installed properly or aligned with the pipeline, it can lead to leakage. Ensure correct alignment during installation and check the seating surfaces.
Foreign Material or Debris: In some cases, debris or corrosive build-up may prevent the valve from sealing correctly. Cleaning the valve regularly and using filters in your system can reduce the chances of debris accumulation.
How do I know which material is best for my hard-seated gate valve?
The material of the hard-seated gate valve should be selected based on the type of fluid being controlled and the operating environment.
Common materials include:
Stainless Steel: Ideal for general industrial applications where corrosion resistance is crucial.
Alloy Steels: Used for high-temperature or high-pressure applications, such as in oil and gas or power generation industries.
Carbon Steel: Commonly used for standard flow systems but may require additional coatings for corrosion protection.
Chromium Carbide: Best for highly abrasive environments, like slurry transport or mining operations.
Consult your fluid’s chemical properties and operating conditions to determine the best material.
How can I prevent valve operation from becoming difficult in high-pressure systems?
In high-pressure systems, hard-seated gate valves can become difficult to operate due to internal pressure buildup or debris blocking the valve.
To solve this issue:
Regular Maintenance: Perform regular maintenance and inspection to identify any wear or debris that may impede the valve’s movement.
Use of Actuators: Consider adding an actuator (electric, pneumatic, or hydraulic) to assist with valve opening and closing in high-pressure systems, making operation smoother.
Choose Valves with Anti-Seizing Features: Some valves come equipped with anti-seizing mechanisms that help prevent blockages or difficulty in operation.
Why are hard-seated gate valves more expensive than soft-seated ones?
The higher cost of hard-seated gate valves is primarily due to the use of more expensive materials for the sealing surface, such as carbide, ceramic, or hardened steel. These materials are designed to withstand extreme pressure, temperature, and abrasive conditions, ensuring long-term durability. In addition, the manufacturing process for hard-seated valves is often more complex. However, the increased upfront cost is offset by the longer lifespan, fewer replacements, and reduced maintenance costs over time, especially in demanding applications.
Can hard-seated gate valves be used for all types of fluids?
While hard-seated gate valves are extremely versatile, they are not suitable for all fluids. They excel in handling abrasive, high-temperature, high-pressure, and corrosive fluids, such as in oil, gas, chemical processing, and power generation industries.
However, they may not be ideal for slurries with very high solid content, as the hard-seating material could erode or degrade over time. It’s crucial to match the valve material to the fluid’s characteristics, as certain chemicals or substances might cause wear on the sealing surfaces. For systems involving non-abrasive, non-corrosive fluids, a soft-seated valve might be more appropriate. Always assess the fluid’s properties and operating conditions before making a decision.
